3 WAYS CARTRIDGE

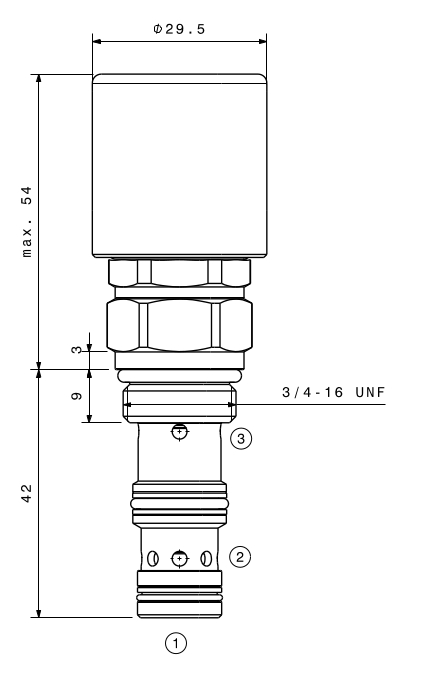

RFP-08-C

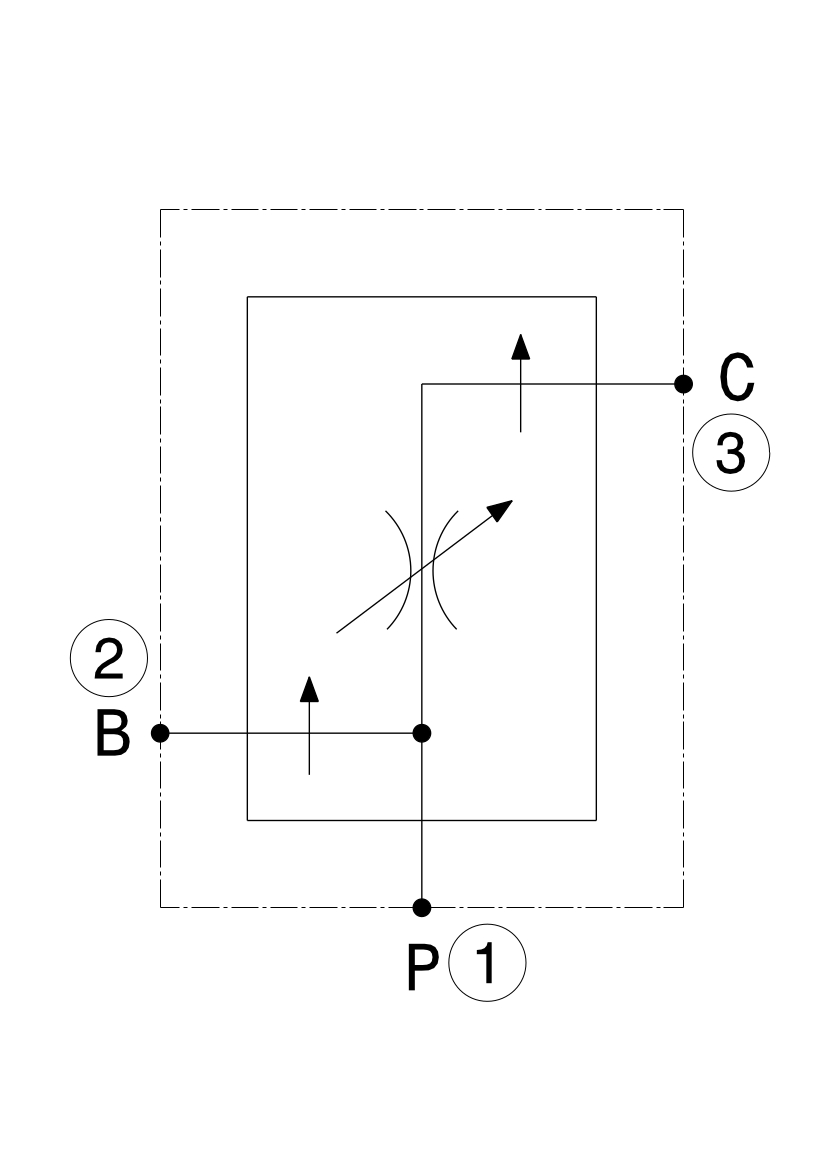

Pressure compensated 3 ways flow regulator cartridge type
| Max flow | 25 l/min 6.6 gpm |
| Regulated flow | 15 l/min 3.96 gpm |
| Max pressure | 350 bar 5000 psi |
| Installation torque | 27 ÷ 30 Nm 20.2 ÷ 22.5 lbf ft |
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C
Recommended viscosity 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C
Absolute filitration 25 μm
