DOUBLE EFFECT
VBD-SF-M / VBD-SP-M
Double effect, pilot operated check valve, poppet type

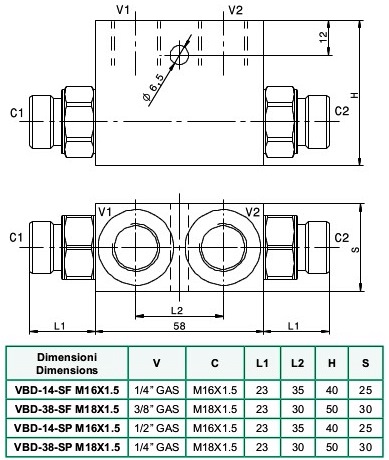

| Type |
Pilot ratio |
Max pressure [bar] | Max flow [l/min] |
| VBD-14-SF-M16X1.5 | 4:1 | 350 | 20 |
| VBD-38-SF-M18X1.5 | 4:1 | 350 | 35 |
| VBD-14-SP-M16X1.5 | 4:1 | 350 | 20 |
| VBD-38-SP-M18X1.5 | 4:1 | 350 | 35 |
| Cracking pressure |
1.5bar 3bar |
Performance and calibrations are carried out by using hydraulic oil with 30 cSt a 50°C
Reccommended 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C
Absolute filitration 25 μm
code
description
max. flow rate
max. pressure
threads
3dfiles
(ordering initials)
l/min
gpm
bar
psi
VB000111
VBD14SP M16X1,5
20
5.28
350
5076
G1/4 M16X1.5
VB000115
VBD38SP M18X1,5
35
9.25
350
5076
G3/8 M18X1.5
