PNEUMATIC VALVE
PV-08-2X-C

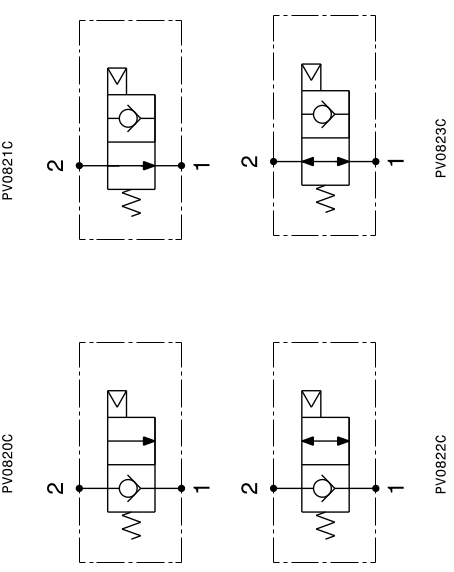

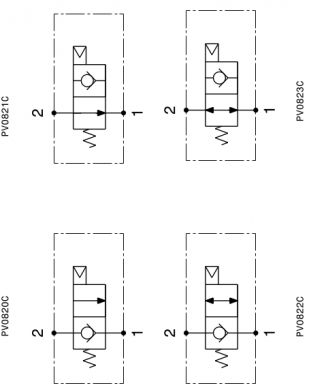

Directional valve, pneumatic operated, normally closed – cartridge type
|
Maximum flow |
40 l/min 10.6 gpm |
|
Maximum pressure |
250 bar 3600 psi |
|
Maximum pressure |
350 bar 5000 psi |
|
Installation torque |
27÷30 Nm 20÷23 lbf ft |
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C (122 F).
Recommended viscosity 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C (-4 F ÷ +194 F)
Absolute filitration 25 μm
