PNEUMATIC VALVE

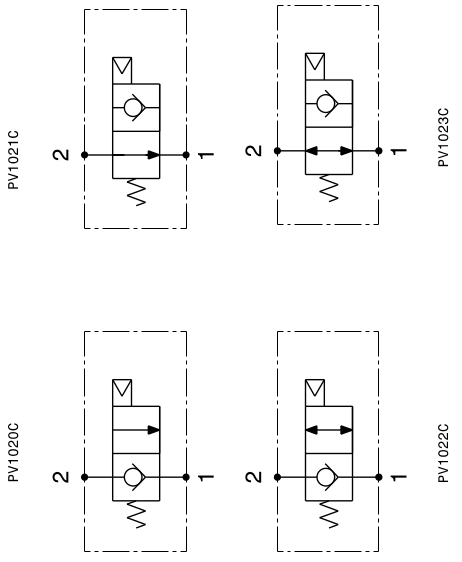

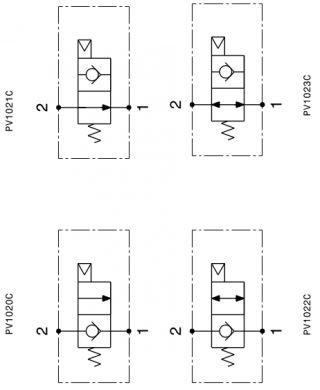

PV-10-2X-C
Directional valve, pneumatic operated, normally closed – cartridge type
| Maximum flow | 70 l/min 18.5 gpm |
| Maximum pressure | 250 bar 3600 psi |
| Maximum pressure (Y) | 350 bar 5000 psi |
| Installation torque | 45÷50 Nm 33÷37 lbf ft |
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C (122 F).
Recommended viscosity 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C (-4 F ÷ +194 F)
Absolute filitration 25 μm
