PNEUMATIC VALVE
PV-20-2X-C

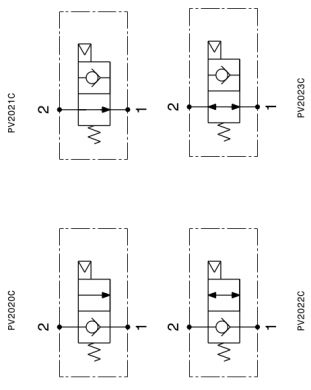

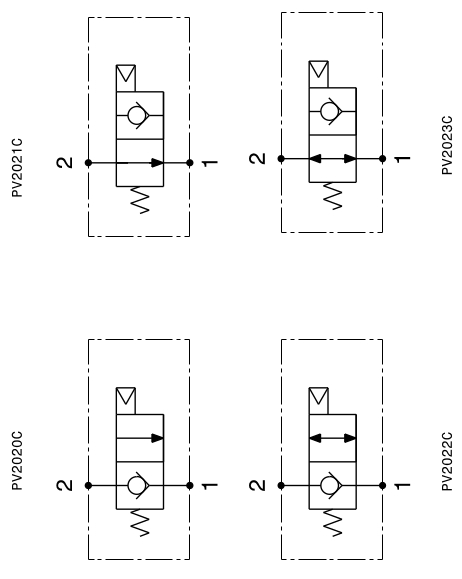

Directional valve, pneumatic operated, normally closed – cartridge type
|
Maximum flow |
200 l/min 53 gpm |
| Maximum pressure | 300 bar 4350 psi |
|
Maximum pressure (Y) |
300 bar 4350 psi |
|
Installation torque |
230÷250 Nm 170÷190 lbf ft |
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C (122 F).
Recommended viscosity 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C (-4 F ÷ +194 F)
Absolute filitration 25 μm
