SINGLE EFFECT
OVC-SE-L (INOX) (3/8”-1/2”BSP)

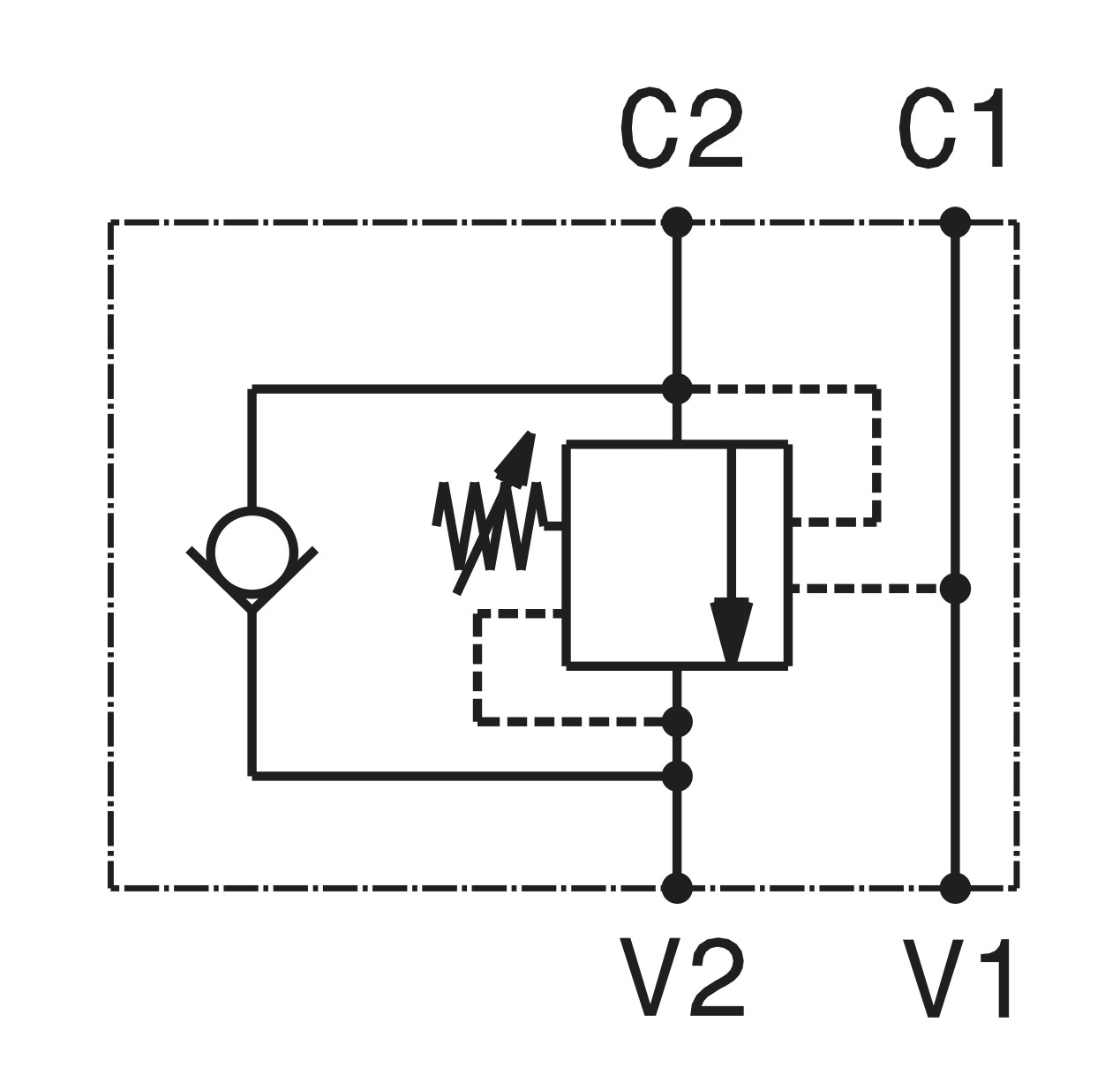

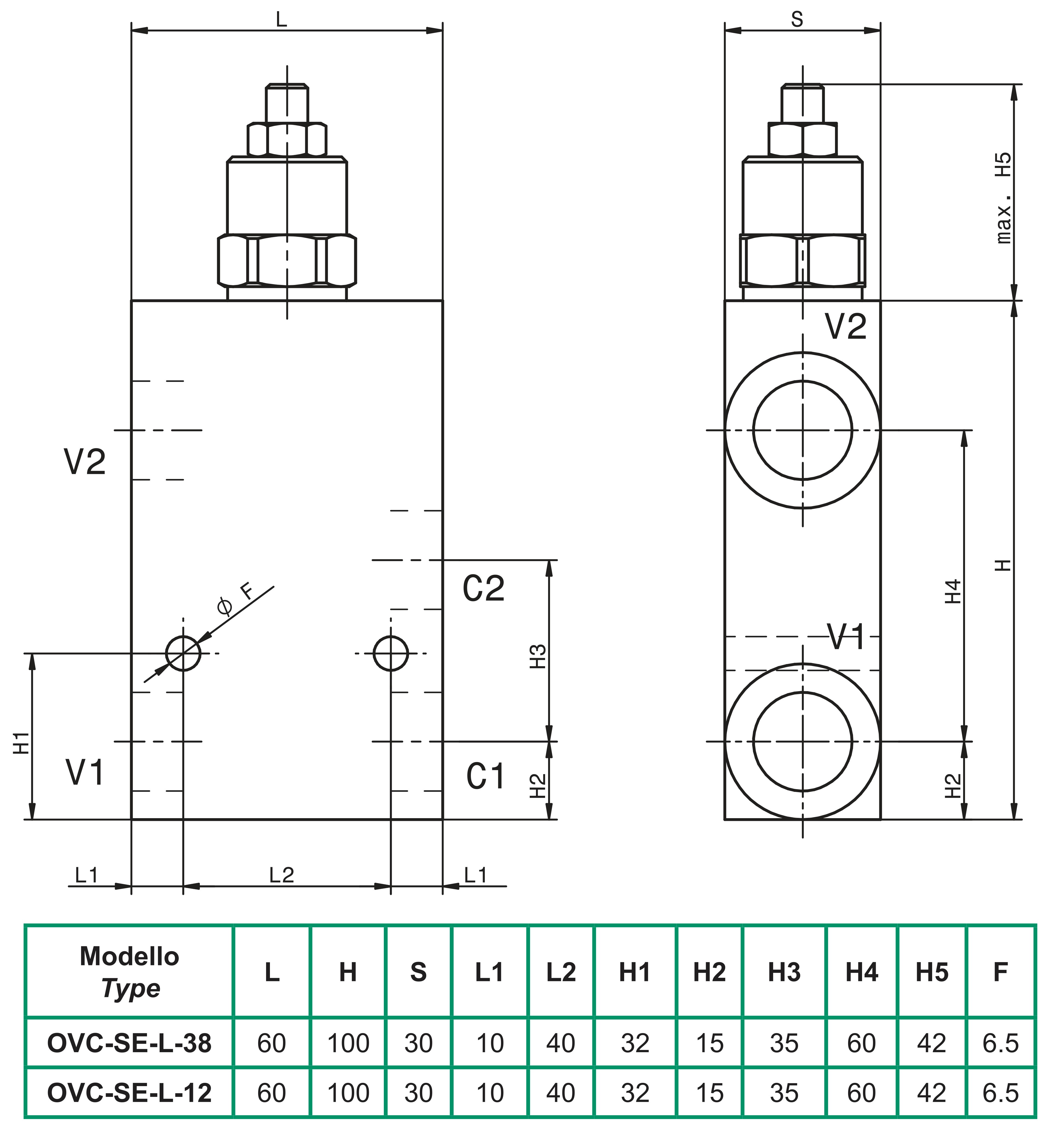

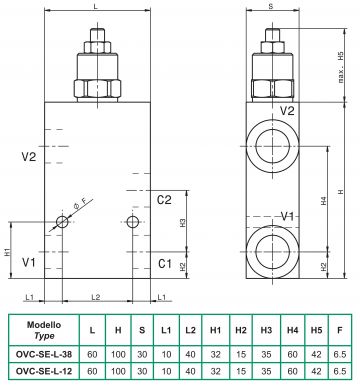

In line, single effect COUNTERBALANCE valve INOX
| Max pressure | 350 bar |
| Standard pilot ratio | 4,25:1 (G3/8"-G1/2") 4:1 (G3/4"-G1") |
| Pilot ratio upon request | 3:1 8:1 10:1 |
| Type | V1, V2, C1, C2 | Maximum flow [l/min] |
| OVC-SE-L-38 | 3/8" GAS | 40 |
| OVC-SE-L-12 | 1/2" GAS | 70 |
| Setting | The valve must be set at least 1.3 times maximum load induced pressure | ||
| Code | Standard setting bar (Q= 5l/min) |
Adj. pressure range bar |
Spring color |
| 01 | 100 | 20÷200 | White |
| 02 | 280 | 50÷350 | Black |
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C
Recommended viscosity 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C
Absolute filitration 25 μm
