OVC-SE-L

In line, single effect overcentre valve
OVC-SE-L
Download the PDF
SINGLE EFFECT
OVC-SE-L

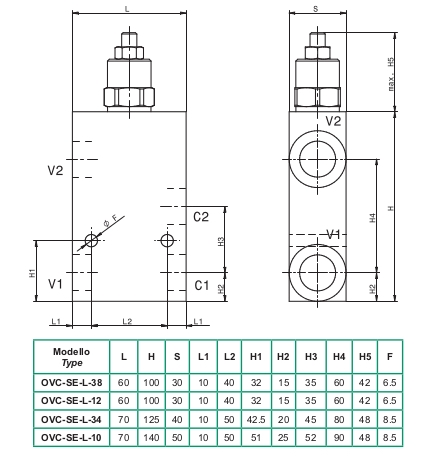

In line, single effect overcentre valve
Max pressure 350 bar
Standard pilot ratio 4,25:1 (G3/8"-G1/2")        4:1 (G3/4"-G1")
Pilot ratio upon request 3:1 8:1 10:1

Type V1, V2, C1, C2 Maximum flow [l/min]
OVC-SE-L-38 3/8" GAS 40
OVC-SE-L-12 1/2" GAS 70
OVC-SE-L-34 3/4" GAS 100
OVC-SE-L-10 1" GAS 120

Setting The valve must be set at least 1.3 times maximum load induced pressure
Code Standard setting
bar (Q= 5l/min)		 Adj. pressure range
bar		 Spring color
01 100 20÷200 White
02 280 50÷350 Black

Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C

Recommended viscosity 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C
Absolute filitration 25 μm



code
description
max. flow rate
max. pressure
threads
3dfiles

(ordering initials)

l/min

gpm

bar

psi

OVC00043
OVCSEL3801
40
10.57
350
5076
G3/8
3D model
OVC00044
OVCSEL3802
40
10.57
350
5076
G3/8
3D model
OVC00045
OVCSEL1201
70
18.49
350
5076
G1/2
3D model
OVC00046
OVCSEL1202
70
18.49
350
5076
G1/2
3D model
OVC00047
OVCSEL3401
100
26.42
350
5076
G3/4
3D model
OVC00048
OVCSEL3402
100
26.42
350
5076
G3/4
3D model
OVC00049
OVCSEL1001
120
31.70
350
5076
G1
3D model
OVC00050
OVCSEL1002
120
31.70
350
5076
G1
3D model
OVC00097
OVCSEL38F01
40
10.57
350
5076
G3/8
OVC00098
OVCSEL38F02
40
10.57
350
5076
G3/8
OVC00099
OVCSEL12F01
70
18.49
350
5076
G1/2
OVC00100
OVCSEL12F02
70
18.49
350
5076
G1/2
OVC00101
OVCSEL34F01
110
29.06
350
5076
G3/4
OVC00102
OVCSEL34F02
110
29.06
350
5076
G3/4
OVC00103
OVCSEL10F01
120
31.70
350
5076
G1
OVC00104
OVCSEL10F02
120
31.70
350
5076
G1
OVC00259
OVCSEL3801A (ACCIAIO)
40
10.57
350
5076
G3/8
OVC00260
OVCSEL3802A (ACCIAIO)
40
10.57
350
5076
G3/8
OVC00261
OVCSEL1201A (ACCIAIO)
70
18.49
350
5076
G1/2
OVC00262
OVCSEL1202A (ACCIAIO)
70
18.49
350
5076
G1/2
OVC00263
OVCSEL3401A (ACCIAIO)
100
26.42
350
5076
G3/4
OVC00264
OVCSEL3402A (ACCIAIO)
100
26.42
350
5076
G3/4
OVC00265
OVCSEL1001A (ACCIAIO)
120
31.70
350
5076
G1
OVC00266
OVCSEL1002A (ACCIAIO)
120
31.70
350
5076
G1
OVC00279
OVCSEL38F01A (ACCIAIO)
40
10.57
350
5076
G3/8
OVC00280
OVCSEL38F02A (ACCIAIO)
40
10.57
350
5076
G3/8
OVC00281
OVCSEL12F01A (ACCIAIO)
70
18.49
350
5076
G1/2
OVC00282
OVCSEL12F02A (ACCIAIO)
70
18.49
350
5076
G1/2
OVC00283
OVCSEL34F01A (ACCIAIO)
110
29.06
350
5076
G3/4
OVC00284
OVCSEL34F02A (ACCIAIO)
110
29.06
350
5076
G3/4
OVC00285
OVCSEL10F01A (ACCIAIO)
120
31.70
350
5076
G1
OVC00286
OVCSEL10F02A (ACCIAIO)
120
31.70
350
5076
G1
OVC00322
OVCSEL3402D
100
26.42
350
5076
G3/4
OVC00324
OVCSEL1202D
70
18.49
350
5076
G1/2
OVC00332
OVCSEL3802D
40
10.57
350
5076
G3/8
OVC00378
OVCSEL3802 ANODIZZATO-INOX
40
10.57
350
5076
G3/8
3D model
OVC00381
OVCSEL3401 130 BAR
100
26.42
350
5076
G3/4
3D model
OVC00388
OVCSEL3801D
40
10.57
350
5076
G3/8
OVC00413
OVCSEL3801 35 BAR
40
10.57
350
5076
G3/8
3D model
OVC00422
OVCSEL3802 R.P. 10:1
40
10.57
350
5076
G3/8
3D model
OVC00438
OVCSEL1202 R.P. 10:1
70
18.49
350
5076
G1/2
3D model
OVC00439
OVCSEL3801 R.P. 3:1
40
10.57
350
5076
G3/8
3D model
OVC00446
OVCSEL1202A (ACCIAIO) OR VITON
70
18.49
350
5076
G1/2
OVC00461
OVCSEL12F01 R.P.8:1
70
18.49
350
5076
G1/2
OVC00489
OVCSEL38F02 R.P. 10:1
40
10.57
350
5076
G3/8
OVC00534
OVCSEL3801 R.P.8:1
40
10.57
350
5076
G3/8
3D model
OVC00536
OVCSEL3802 R.P.8:1
40
10.57
350
5076
G3/8
3D model
OVC00612
OVCSEL3401 R.P.8:1
100
26.42
350
5076
G3/4
3D model
OVC00613
OVCSEL3402 R.P.8:1
100
26.42
350
5076
G3/4
3D model
OVC00759
OVCSEL3802CA (ACCIAIO) 200 BAR
40
10.57
350
5076
G3/8
OVC00756
OVCSEL1201D R.P. 3:1
70
18.49
350
5076
G1/2
OVC00755
OVCSEL3801D R.P. 3:1
40
10.57
350
5076
G3/8
OVC00380
OVCSEL3802S SAE
40
10.57
350
5076
G3/8
OVC00405
OVCSEL3801 C1 - V1 TAPPATI
40
10.57
350
5076
G3/8
3D model
OVC00496
OVCSEL3802 R.P. 10:1 ANODIZZATO INOX
40
10.57
350
5076
G3/8
3D model
OVC00506
OVCSEL3801 GRANO INOX
40
10.57
350
5076
G3/8
OVC00632
OVCSEL3802C 150 BAR
40
10.57
350
5076
G3/8
OVC00704
OVCSEL3802 AN. NERO
40
10.57
350
5076
G3/8
3D model
OVC00711
OVCSEL3801 C1 – V1 TAPPATI 85 BAR
40
10.57
350
5076
G3/8
OVC00498
OVCSEL1202 GRANO INOX
70
18.49
350
5076
G1/2
3D model
OVC00647
OVCSEL1202 R.P. 8:1
70
18.49
350
5076
G1/2
3D model
OVC00809
OVCSEL1202A (ACCIAIO) F.F.8,5
70
18.49
350
5076
G1/2
OVC00491
OVCSEL3402A R.P.8:1
110
29.06
350
5076
G3/4
