| Maximum flow | 40 l/min |
| Maximum pressure | 350 bar |
| Cracking pressure | 1 bar 3 bar 5 bar |
| Installation torque | 27÷30 Nm |
Performaces and calibrations are carried out by using hydraulic oil with 30 cSt viscosity at 50°C
Recommended viscosity 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C
Absolute filitration 25 μm
code
description
max. flow rate
max. pressure

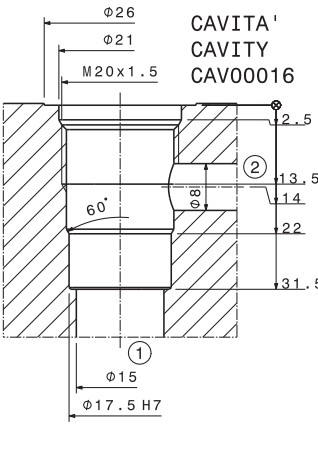

cavities
3dfiles
(ordering initials)
l/min
gpm
bar
psi
