CHECK VALVES

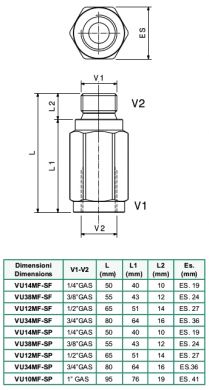

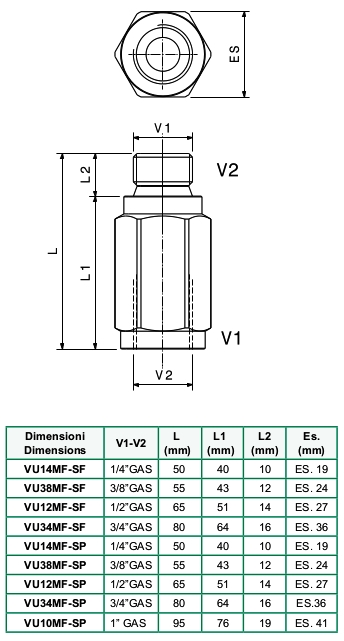

VUMF-SF / VUMF-SP
In line check valve, ball and poppet type, male - female thereaded
| Type |
V1 V2 |
Max pressure [bar] | Max flow [l/min] |
|
VU14MF-SF |
1/4" GAS | 500 | 15 |
|
VU38MF-SF |
3/8" GAS | 500 | 30 |
|
VU12MF-SF |
1/2 " GAS | 500 | 50 |
|
VU34MF-SF |
3/4" GAS | 350 | 90 |
|
VU14MF-SP |
1/4" GAS | 500 | 15 |
| VU38MF-SP |
3/8" GAS |
500 | 30 |
|
VU12MF-SP |
1/2 " GAS | 500 | 50 |
|
VU34MF-SP |
3/4" GAS | 350 | 90 |
|
VU10MF-SP |
1" GAS | 350 | 150 |
|
Cracking pressure |
14.5 - 43 - 72 psi |
Performance and calibrations are carried out by using hydraulic oil with 30 cSt a 50°C
Reccommended 10 ÷ 420 cSt
Working temperature -20 ÷ +90 °C
Absolute filitration 25 μm
