basi monoblocco

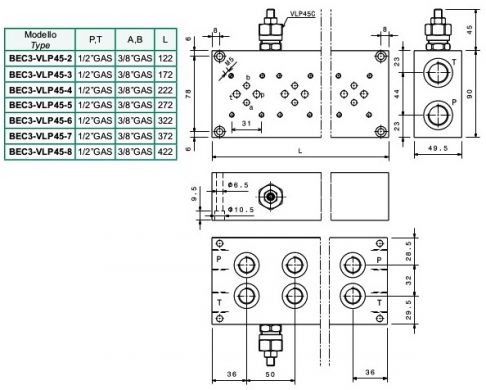

BEC3-VLP45-n
Base monoblocco con valvola limitatrice di pressione - luce 6
| Portata massima | 40 l/min |
| Pressione massima | 280bar |
| Modello | P, T | A, B | L |
| BEC3-VLP45-2 | 1/2"GAS | 3/8"GAS | 122 |
| BEC3-VLP45-3 | 1/2"GAS | 3/8"GAS | 172 |
| BEC3-VLP45-4 | 1/2"GAS | 3/8"GAS | 222 |
| BEC3-VLP45-5 | 1/2"GAS | 3/8"GAS | 272 |
| BEC3-VLP45-6 | 1/2"GAS | 3/8"GAS | 322 |
| BEC3-VLP45-7 | 1/2"GAS | 3/8"GAS | 372 |
| BEC3-VLP45-8 | 1/2"GAS | 3/8"GAS | 422 |
| Taratura | ||
| Codice | Taratura standard bar (Q= 5l/min) |
Campo di taratura bar |
| 00 | 40 | 5÷40 |
| 01 | 80 | 20÷100 |
| 02 | 180 | 40÷250 |
| 03 | 250 | 60÷350 |
Dati e tarature ottenuti usando olio con viscosità 30 cSt a 50°C
Viscosità consigliate 10 ÷ 420 cSt
Temperature di lavoro -20 ÷ +90 °C
Filtrazione assoluta 25 μm
codice
descrizione
portata max
pressione max
filettature
(sigla di ordinazione)
l/min
gpm
bar
psi
BEC00019
BEC3VLP45201A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00020
BEC3VLP45201B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00021
BEC3VLP45201C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00022
BEC3VLP45201D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00023
BEC3VLP45202A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00024
BEC3VLP45202B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00025
BEC3VLP45202C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00026
BEC3VLP45202D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00027
BEC3VLP45203A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00028
BEC3VLP45203B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00029
BEC3VLP45203C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00030
BEC3VLP45203D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00031
BEC3VLP45301A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00032
BEC3VLP45301B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00033
BEC3VLP45301C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00034
BEC3VLP45301D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00035
BEC3VLP45302A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00036
BEC3VLP45302B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00037
BEC3VLP45302C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00038
BEC3VLP45302D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00039
BEC3VLP45303A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00040
BEC3VLP45303B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00041
BEC3VLP45303C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00042
BEC3VLP45303D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00043
BEC3VLP45401A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00044
BEC3VLP45401B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00045
BEC3VLP45401C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00046
BEC3VLP45401D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00047
BEC3VLP45402A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00048
BEC3VLP45402B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00049
BEC3VLP45402C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00050
BEC3VLP45402D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00051
BEC3VLP45403A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00052
BEC3VLP45403B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00053
BEC3VLP45403C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00054
BEC3VLP45403D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00055
BEC3VLP45501A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00056
BEC3VLP45501B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00057
BEC3VLP45501C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00058
BEC3VLP45501D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00059
BEC3VLP45502A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00060
BEC3VLP45502B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00061
BEC3VLP45502C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00062
BEC3VLP45502D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00063
BEC3VLP45503A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00064
BEC3VLP45503B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00065
BEC3VLP45503C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00066
BEC3VLP45503D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00067
BEC3VLP45601A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00068
BEC3VLP45601B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00069
BEC3VLP45601C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00070
BEC3VLP45601D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00071
BEC3VLP45602A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00072
BEC3VLP45602B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00073
BEC3VLP45602C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00074
BEC3VLP45602D
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00075
BEC3VLP45603A
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00076
BEC3VLP45603B
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00077
BEC3VLP45603C
40
10.57
280
4061
G1/2 G3/8 CETOP3
BEC00078
BEC3VLP45603D
40
10.57
280
4061
G1/2 G3/8 CETOP3
