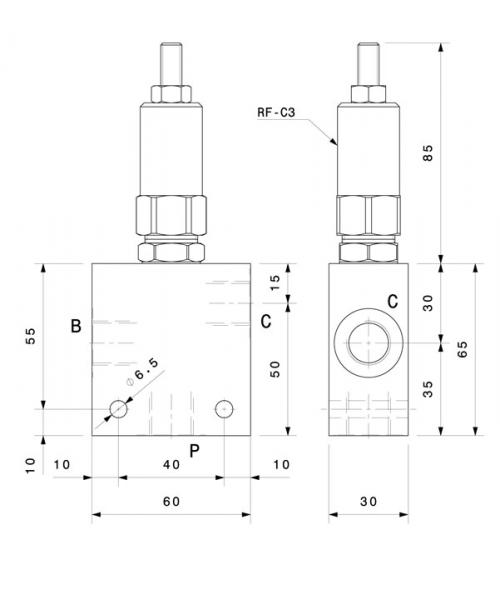

| Modello | P, B, C | Pressione massima [bar] | Portata massima [l/min] |
| RF-3-38 | 3/8" GAS | 300 | 40 |
| RF-3-12 | 1/2" GAS | 300 | 40 |
| Taratura | |
| Codice taratura | Campo di portata l/min |
| 01 | 2÷6 |
| 02 | 5÷10 |
| 03 | 10÷18 |
| 04 | 20÷35 |
| Opzioni | |||
A Vite esterna esagono incassato |
B Volantino e dado |
C Piombatura |
D Cappellotto |
Dati e tarature ottenuti usando olio con viscosità 30 cSt a 50°C
Viscosità consigliate 10 ÷ 420 cSt
Temperature di lavoro -20 ÷ +90 °C
Filtrazione assoluta 25 μm
codice
descrizione
portata max
pressione max
filettature
(sigla di ordinazione)
l/min
gpm
bar
psi
RF000072
RF33801A
6
1.59
300
4351
G3/8
RF000073
RF33801B
6
1.59
300
4351
G3/8
RF000074
RF33801C
6
1.59
300
4351
G3/8
RF000075
RF33801D
6
1.59
300
4351
G3/8
RF000076
RF33802A
10
2.64
300
4351
G3/8
RF000077
RF33802B
10
2.64
300
4351
G3/8
RF000078
RF33802C
10
2.64
300
4351
G3/8
RF000079
RF33802D
10
2.64
300
4351
G3/8
RF000080
RF33803A
18
4.76
300
4351
G3/8
RF000081
RF33803B
18
4.76
300
4351
G3/8
RF000082
RF33803C
18
4.76
300
4351
G3/8
RF000083
RF33803D
18
4.76
300
4351
G3/8
RF000084
RF33804A
35
9.25
300
4351
G3/8
RF000085
RF33804B
35
9.25
300
4351
G3/8
RF000086
RF33804C
35
9.25
300
4351
G3/8
RF000087
RF33804D
35
9.25
300
4351
G3/8
RF000088
RF31201A
6
1.59
300
4351
G1/2
RF000089
RF31201B
6
1.59
300
4351
G1/2
RF000090
RF31201C
6
1.59
300
4351
G1/2
RF000091
RF31201D
6
1.59
300
4351
G1/2
RF000092
RF31202A
10
2.64
300
4351
G1/2
RF000093
RF31202B
10
2.64
300
4351
G1/2
RF000094
RF31202C
10
2.64
300
4351
G1/2
RF000095
RF31202D
10
2.64
300
4351
G1/2
RF000096
RF31203A
18
4.76
300
4351
G1/2
RF000097
RF31203B
18
4.76
300
4351
G1/2
RF000098
RF31203C
18
4.76
300
4351
G1/2
RF000099
RF31203D
18
4.76
300
4351
G1/2
RF000100
RF31204A
35
9.25
300
4351
G1/2
RF000101
RF31204B
35
9.25
300
4351
G1/2
RF000102
RF31204C
35
9.25
300
4351
G1/2
RF000103
RF31204D
35
9.25
300
4351
G1/2
